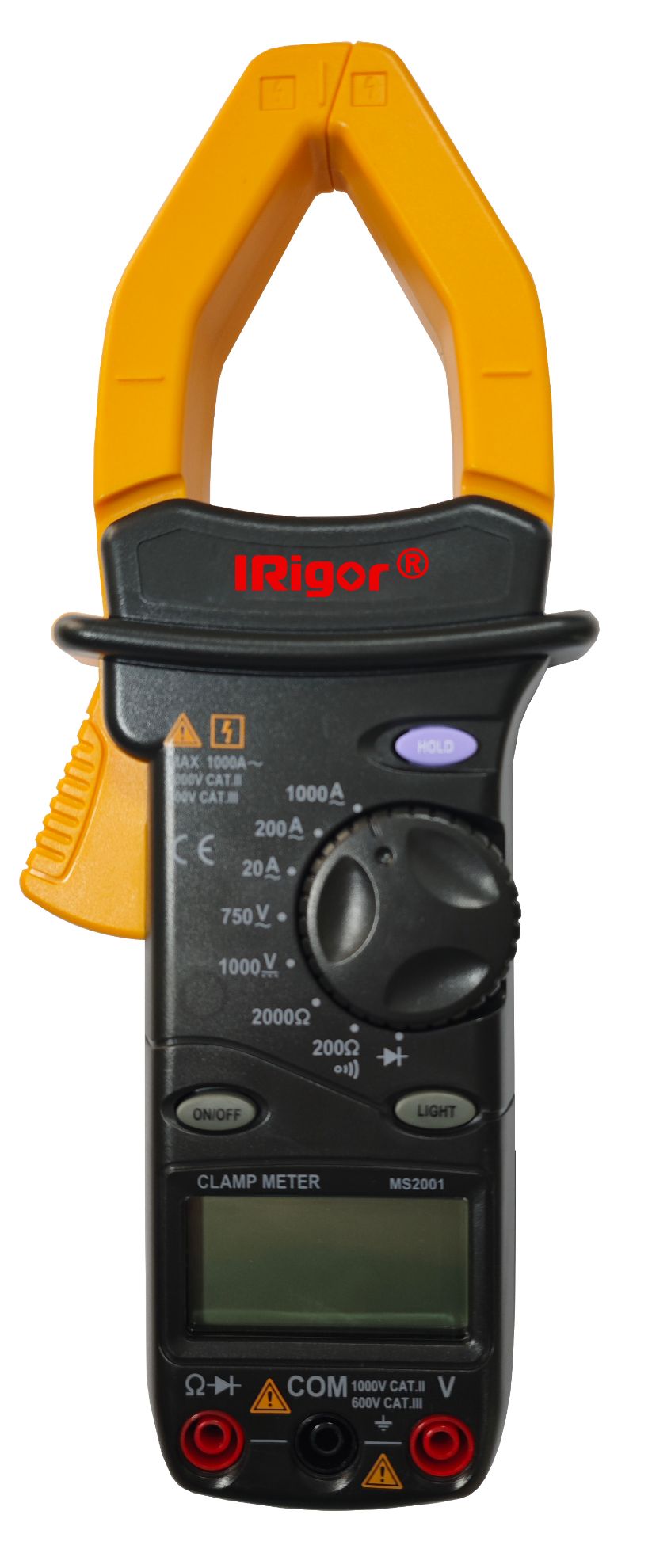

MS2101 Digital Clamp Meter DMM Hz/C Clamp Meter Capacitance Frequency
Product Features
Specification
range
Resolution
Accuracy
DC Voltage
400mV/4V/40V/400V
0.1mV/1mV/10mV/0.1V
±(0.7%+1)
1000V
1V
±(0.8%+3)
AC Voltage
4V/40V/400V
1mV/10mV/0.1V
±(0.8%+5)
750V
±(1.0%+10)
DC Current
400A/1000A
0.1A/1A
±(3.0%+3)
AC Current
Resistance
400Ω/4kΩ/40kΩ/400kΩ/4MΩ
0.1Ω/1Ω/10Ω/0.1kΩ/1kΩ
±(1.2%+1)
40MΩ
10kΩ
±(2.0%+3)
Capacitance
4nF/40nF/400nF
1pF/10pF/0.1nF
±(4.0%+10)
4µF/40µF/100µF
1nF/10nF/100nF
Frequency
40Hz/400Hz/4kHz
0.01Hz/0.1Hz/1Hz
±(2.0%+1)
40kHz/100kHz
10Hz/0.1kHz
Duty Cycle
0.1%~99.9%
0.10%
±(2.0%+2)
Temperature
-40℃~0℃
1℃
±(1.0%+6)
1℃~400℃
±(1.0%+3)
401℃~750℃
±(1.0%+5)
Power source : 1×9V 6F22 battery
