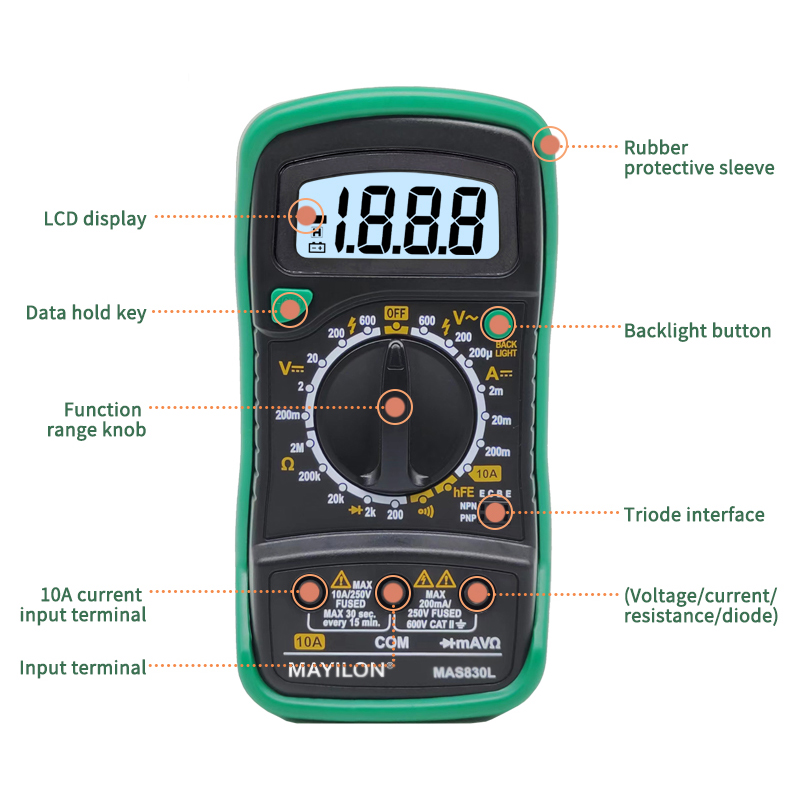

Features
● Display 2000 counts
● Diode Open Voltage 3.0V

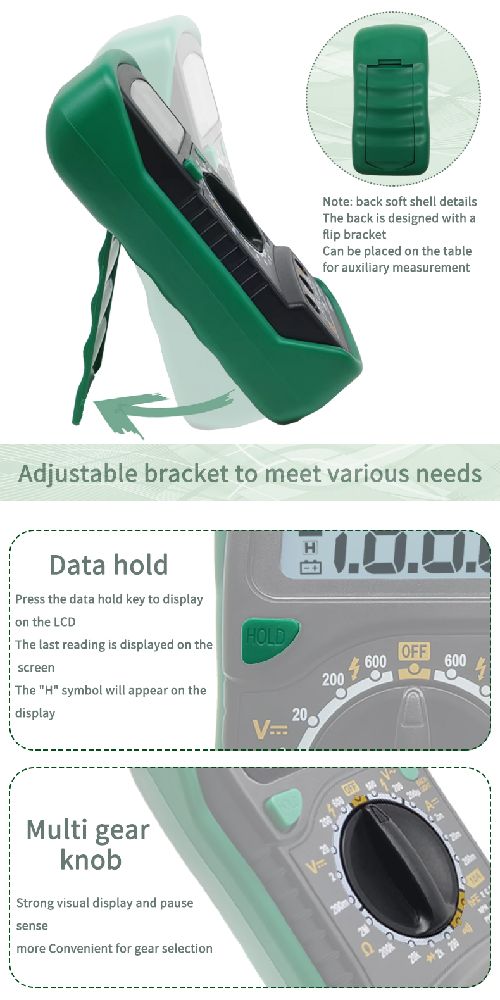

● Data Hold
● Low Battery Display
● Continuity Buzzer <70 ±30Ω

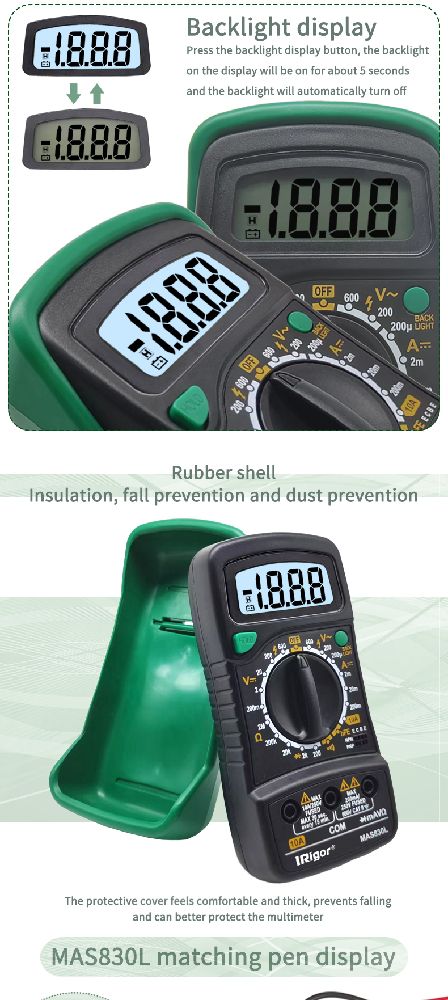

● Display Backlight
Specifications
Specifications | Range | Resolution | Accuracy |
DC Voltage | 200mV/2V/20V/200V 600V | 0.1mV/1mV/10mV/0.1V 1V | ±(0.5%+3) ±(0.8%+5) |
AC Voltage | 200V/600V | 0.1V/1V | ±(1.2%+10) |
DC Current | 20μA 200μA/2mA 20mA 200mA 10A | 0.01μA 0.1μA/1μA 10μA 0.1mA 10mA | ±(1.0%+3) ±(1.0%+3) ±(1.0%+5) ±(1.5%+5) ±(3.0%+10) |
Resistance | 200Ω 2kΩ/20kΩ/200kΩ 2MΩ | 0.1Ω 1Ω/10Ω/0.1kΩ 1kΩ | ±(0.8%+5) ±(0.8%+2) ±(1.0%+5) |
General
● Power Supply : 1x9V 6F22 Battery

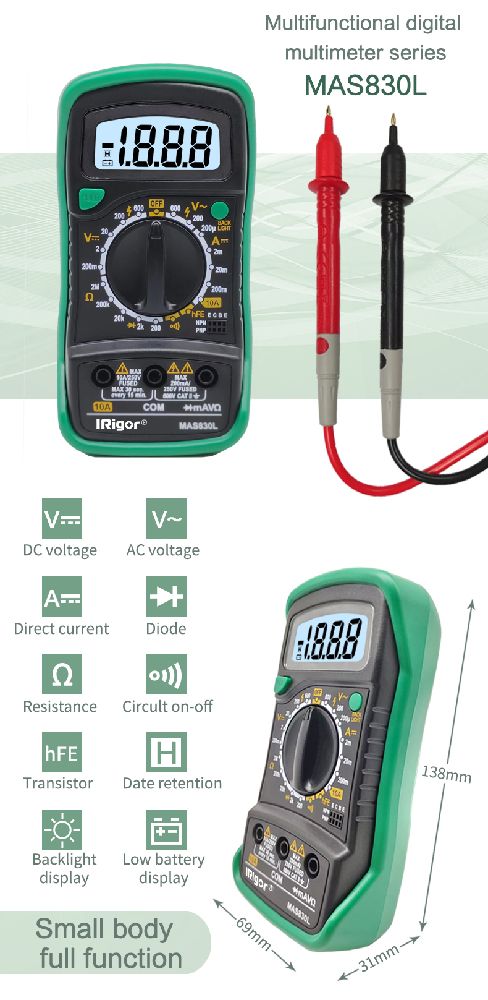

● Product Size : 145mmx76mmx40mm/5.7"x3"x1.57"
● Product Weight : 202g/0.44lb
● Certificate : CE / ETL / RoHS
Accessories

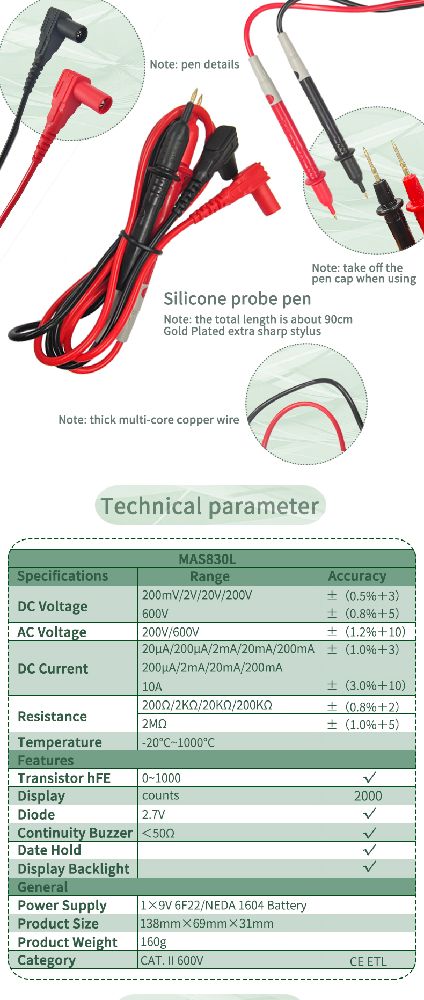

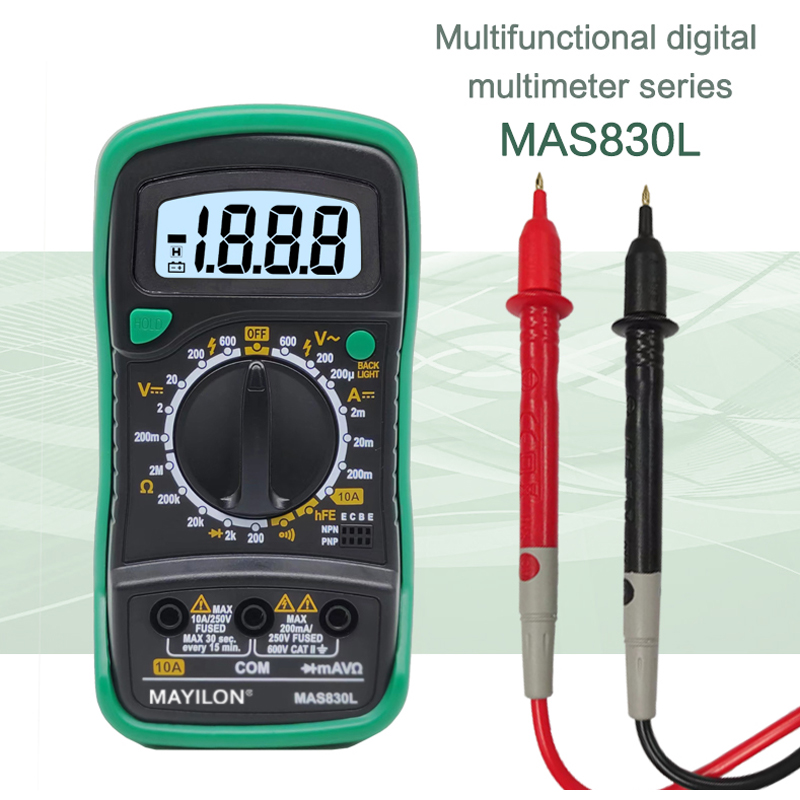

● Test leads
● User's manual
